Product Overview

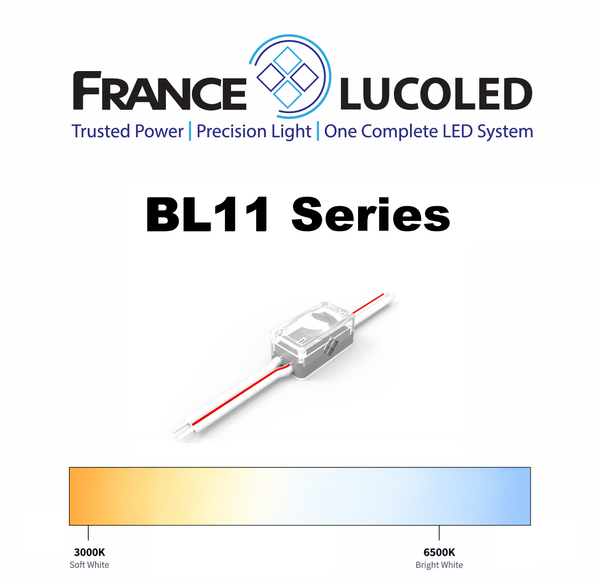

LucoLED Plus BL11 is a compact, high-efficiency 12V LED module designed for backlighting routed full-acrylic channel letters as well as very narrow and small traditional channel letters. Its fully enclosed IP65 construction eliminates the need to fully pot acrylic letters, helping simplify production while protecting the LED phosphor from potential color shift or reduced life caused by potting materials.
Delivering 38 lumens per module at only 0.24W, the BL11 achieves an impressive 158 lm/W efficacy. Constant Current Technology, narrow white binning, a 120° beam angle, and the ability to cut between every module make it a versatile solution for small and detailed illuminated signage. The BL11 is UL, CE, and RoHS compliant.
Available color temperatures: 3000K, 6500K
300 modules per bag, 50 modules per string. 28 bags in a carton
Special Volume Pricing- Request a Quote for 21+ Cartons. Can be a mix of France Lucoled SKUs! Use the "Add to Quote" button on this page.
Lucoled LED modules are available in the U.S. through France Lighting Solutions, bringing Lucoled's professional LED sign technology to the American sign market.
Key Features:
- Great for small and detailed illuminated signage
- High efficiency- up to 158 lumens per Watt, 0.24W per module, 38 lumens per module
- Constant Current Technology
- Narrow white binning- extreme color consistency
- 12V DC operation
- Up to 50 modules per chain
- Beam angle 120 degrees
- Can be cut between every unit
- CE and RoHS compliant
