Product Overview

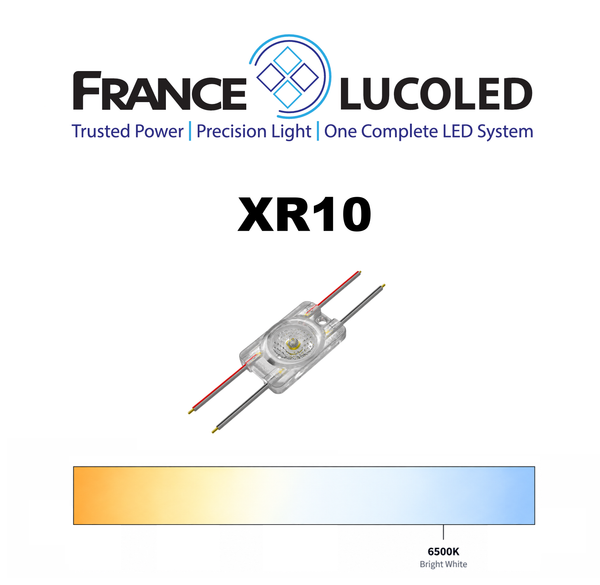

The LucoLED XR10 Extreme Series is an ultra-compact, high-efficiency 24V LED module engineered for uniform illumination in extremely shallow channel letters and lightboxes approximately 1"–3" deep. Its advanced Helios Ultra Flat Beam lens technology produces a broad 175° beam pattern that helps eliminate hot spots and achieve even face illumination where conventional LED modules may not have enough depth for proper light dispersion. Designed for channel letters as shallow as 0.98", the XR10 provides a cost-effective alternative to solid-acrylic Block LED construction while delivering excellent efficiency and coverage for demanding sign applications.
Available color temperature: 6500K
120 modules per bag, 60 modules per string. 14 bags in a carton
Special Volume Pricing- Request a Quote for 21+ Cartons. Can be a mix of France Lucoled SKUs! Use the "Add to Quote" button on this page.
Lucoled LED modules are available in the U.S. through France Lighting Solutions, bringing Lucoled's professional LED sign technology to the American sign market.
Key Features:
- Designed for ultra-shallow 1"–3" channel letters and lightboxes
- Advanced Helios Ultra Flat Beam lens technology
- High efficiency- up to 167 lumens per Watt, 0.36W per module, 60 lumens per module
- Constant Current Technology
- Narrow white binning- extreme color consistency
- 24V DC operation for longer module runs
- Beam angle 175 degrees
- Can be cut between every unit
- CE and RoHS compliant
