Product Overview

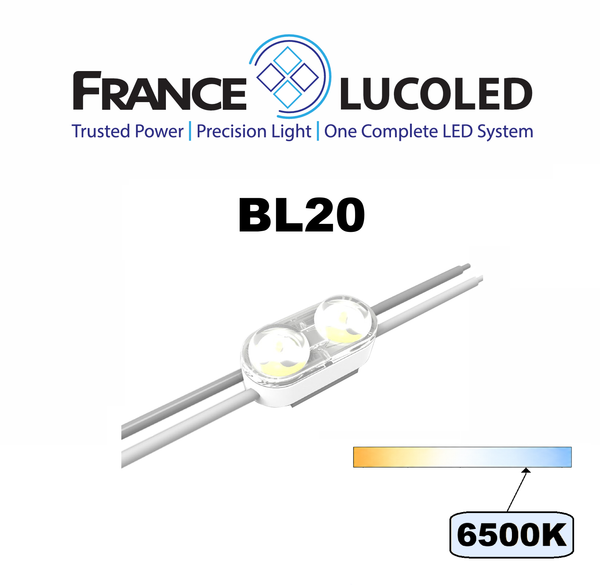

Lucoled BL20 is an ultra-compact 12V LED module designed for very narrow and small face-lit channel letters, including 3D-printed letter applications. Lucoled's smallest 2-LED module combines Lucolense Technology with a wide 155° beam angle to provide efficient, uniform illumination in channel letters from just 0.79" to 2.36" deep.
Designed with installers in mind, the BL20 features 3M VHB mounting tape and Lucoled's Bend-And-Stay PVC wiring, which holds its position after bending for easier placement inside small and intricate letters. Its IP67 construction is suitable for outdoor applications, while Constant Current Technology and narrow white binning help provide reliable, consistent illumination
Available color temperature: 6500K
500 modules per bag, 50 modules per string. 12 bags in a carton
Special Volume Pricing- Request a Quote for 21+ Cartons. Can be a mix of France Lucoled SKUs! Use the "Add to Quote" button on this page.
Lucoled LED modules are available in the U.S. through France Lighting Solutions, bringing Lucoled's professional LED sign technology to the American sign market.
Key Features:
- 3M VHB mounting tape and Bend-and-Stay PVC wiring
- High efficiency- up to 107 lumens per Watt, 0.28W per module, 30 lumens per module
- Constant Current Technology
- Narrow white binning- extreme color consistency
- 12V DC operation
- Up to 50 modules per chain
- Beam angle 155 degrees
- Can be cut between every unit
- UL, CE and RoHS compliant
