Product Overview
HUGE Output. HUGE Coverage.

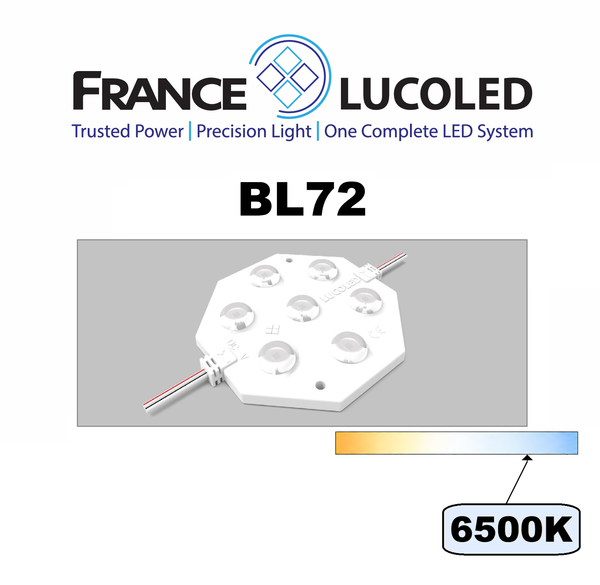

The Lucoled BL72 is a high-output 24V LED module engineered for efficient, uniform illumination of large and deep lightboxes ranging from 5" to 12" deep. Featuring Lucolense Wide Beam Technology and patented optics, the BL72 delivers exceptional coverage that can reduce module count, installation labor, overall power consumption, and the number of power supplies required for large illuminated sign applications.
Each seven-LED BL72 produces an impressive 1,035 lumens at only 7W, achieving 148 lm/W efficacy. A wide 160° beam angle, Constant Current Technology, narrow white binning, IP65 construction, and 24V operation make the BL72 particularly well suited for demanding commercial lightbox installations where high output and wide module spacing are required.
Color temperature: 6500K
10 modules per bag, 10 modules per string. 8 bags in a carton
Special Volume Pricing- Request a Quote for 21+ Cartons. Can be a mix of France Lucoled SKUs! Use the "Add to Quote" button on this page.
Lucoled LED modules are available in the U.S. through France Lighting Solutions, bringing Lucoled's professional LED sign technology to the American sign market.
Key Features:
- Seven LEDs per module
- 1,035 Lumens per module at 7.0W each with an efficacy of 148lm/W
- Lucolense Wide Beam Technology
- Constant Current Technology
- Narrow white binning- extreme color consistency
- 24V DC operation for longer module runs
- Beam angle 160 degrees
- Can be cut between every unit
- UL, CE and RoHS compliant
