Product Overview

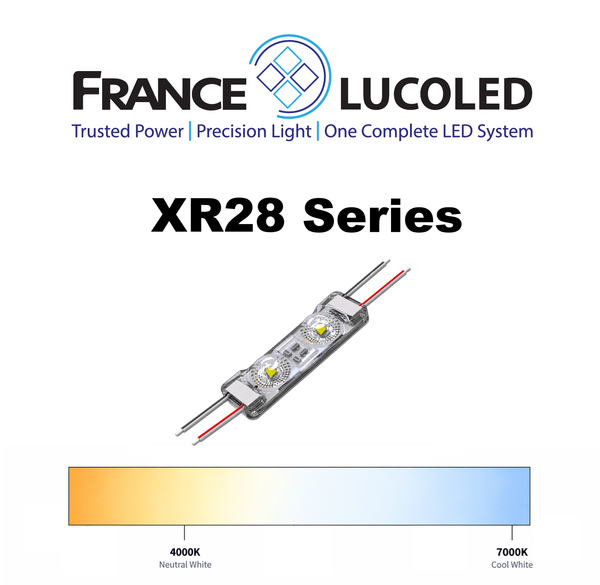

LucoLED XR28 Extreme Series is a high-output, high-efficiency 24V LED module engineered to provide bright, uniform illumination in deeper channel letters and lightboxes while minimizing the number of modules required. Advanced Helios Ultra Flat Beam lens technology produces a broad 175° light pattern for exceptional coverage, allowing wider module spacing and helping reduce module count, wiring, power consumption, and installation labor. Delivering up to 192 lumens per module and 193 lumens per watt, the XR28 is an excellent choice for larger and deeper illuminated sign applications where maximum coverage and energy efficiency are important.
Available color temperatures: 4000K, 7000K
45 modules per bag, 45 modules per string. 24 bags in a carton
Special Volume Pricing- Request a Quote for 21+ Cartons. Can be a mix of France Lucoled SKUs! Use the "Add to Quote" button on this page.
Lucoled LED modules are available in the U.S. through France Lighting Solutions, bringing Lucoled's professional LED sign technology to the American sign market.
Key Features:
- Advanced Helios Ultra Flat Beam lens technology
- High efficiency- up to 193 lumens per Watt, 1.0-1.02W per module, up to 192 lumens per module
- Constant Current Technology
- Narrow white binning- extreme color consistency
- 24V DC operation for longer module runs
- Up to 45 modules per chain
- Beam angle 175 degrees
- Can be cut between every unit
- CE and RoHS compliant
