Product Overview

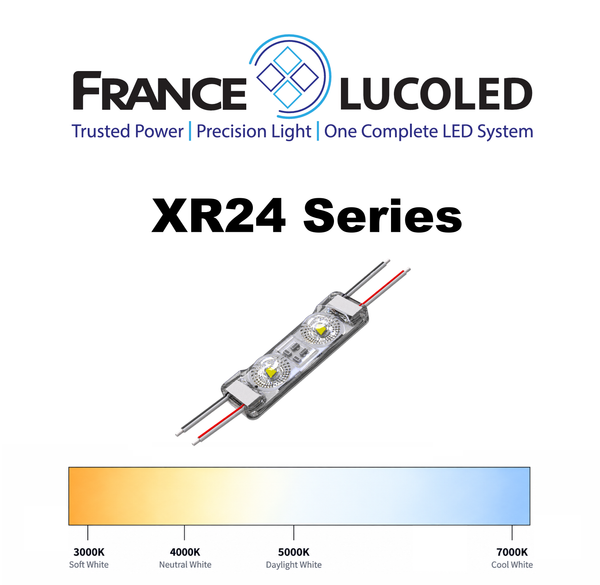

LucoLED XR24 Extreme Series is a premium high-efficiency 24V LED module engineered to provide bright, uniform illumination for channel letters and lightboxes while reducing the number of modules and power supplies required. Advanced Helios Ultra Flat Beam lens technology produces a broad 175° light pattern for excellent coverage and uniform face illumination, allowing wider module spacing and lower overall power consumption. With efficacy reaching an exceptional 197 lumens per watt, the XR24 delivers outstanding performance for high-value sign projects where efficiency, reliability, and long-term operating cost are important
Available color temperatures: 3000K, 4000K, 5000K, and 7000K
60 modules per bag, 100 modules per string. 20 bags in a carton
Special Volume Pricing- Request a Quote for 21+ Cartons. Can be a mix of France Lucoled SKUs! Use the "Add to Quote" button on this page.
Lucoled LED modules are available in the U.S. through France Lighting Solutions, bringing Lucoled's professional LED sign technology to the American sign market.
Key Features:
- Designed for shallow channel letters and lightboxes
- Advanced Helios Ultra Flat Beam lens technology
- High efficiency- up to 197 lumens per Watt, 0.67-0.73W per module (depending on color temp), 144 lumens per module
- Up to 60 modules per chain
- Constant Current Technology
- Narrow white binning- extreme color consistency
- 24V DC operation for longer module runs
- Beam angle 175 degrees
- Can be cut between every unit
- CE and RoHS compliant
