Product Overview

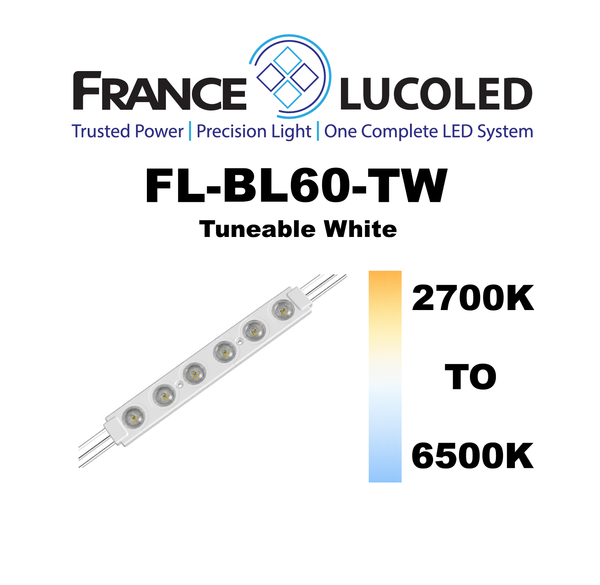

The Lucoled BL60-TW is a high-output 24V tunable-white LED module designed for uniform backlighting of large lightboxes, stretched ceilings, and other large illuminated surfaces. Featuring Lucolense Prismatic Angle Technology and a wide 170° beam angle, the BL60-TW provides broad, efficient coverage while its 2700K and 6500K LEDs allow the white illumination to be adjusted from warm to cool when used with compatible controls.
With both color channels at full output, each six-LED module produces 420 lumens at 3.0W, achieving 140 lm/W efficacy. The BL60-TW also incorporates Constant Current Technology, narrow white binning, IP67 construction, and 24V operation for professional installations requiring high output, wide coverage, and adjustable white illumination.
Color temperature tunable from 2700K - 6500K
25 modules per bag, 25 modules per string. 14 bags in a carton
Special Volume Pricing- Request a Quote for 21+ Cartons. Can be a mix of France Lucoled SKUs! Use the "Add to Quote" button on this page.
Lucoled LED modules are available in the U.S. through France Lighting Solutions, bringing Lucoled's professional LED sign technology to the American sign market.
Key Features:
- Tunable white: 2700K–6500K
- Lucolense Prismatic Angle Technology
- 3.0W per module with 140 lm/W and 420 lumens per module with both channels full output
- 2700K only: 203 lm at 1.5W
- 6500K only: 218 lm at 1.5W
- Constant Current Technology
- Narrow white binning- extreme color consistency
- 24V DC operation for longer module runs
- Beam angle 170 degrees
- Can be cut between every unit
- CE and RoHS compliant
